Flexible Drinking Straw Bending Machine

Flexible Drinking Straw Bending Machine

Flexible Drinking Straw Bending Machine
Flexible Drinking Straw Bending MachineFlexible Drinking Straw Bending MachineFlexible Drinking Straw Bending MachineFlexible Drinking Straw Bending MachineFlexible Drinking Straw Bending Machine
CategoriesDrinking Straw Manufacturing Machine and Materials
AlbumView larger image
BrandToptac
Update Time2018-12-19
Detail Information

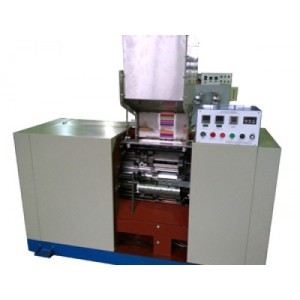

flexible drinking straw bending machine is an equipment used to bending straight drinking straws into flexible ones by second process. The entire operation, from product in-feed, forming to product out-feed, is automatically performed requiring the operator to add the material into the hopper loader only. The straight straws supplied in the hopper at the top of machine, are fed one by one into the main drum of the machine and clamped by two mechanical catches. This machine is composed of main body, main rotary device, forming system, electronic system and hopper etc.

Quality Throughout:

  • The forming parts of flexible drinking straw bending machine are transport unit manufactured from a alloy steel, which has long service time

  • With steady production capacity

  • Automatic products counting, quantity pre-set, easy to operate

  • Automatic stop when a fault has occurred, and reliable.

PARAMETER

SPECIFICATIONS

Model

Flexible drinking straw bending machine

Power&Voltage

1/3 phases 220/380/415V,  1.5 kw/h power   consumption

Motor

1.5 kw

Qty of trans. rack

12 groups

Functions

counter, automatic stop

Machine size

2.2m*1.6m*1.7m(L*W*H)

Machine weight

900KG

Straw Diameter

4/5/6mm, inner dia. 3.8/4.8/5.8mm

Straw Length

150-255mm

Capacity

250-280pcs/min

Packing details

high quality non-fumigation wooden box

Lead time

20-30 days

Shipping port

any port of China
